Pillar Area Lighting
Street and driveway lighting, commercial lights, area lighting, park and campus lights, shadow pattern lighting, artistic landscape sculpture
Pillars built to order
- The standard Pillar is 10.5 ft tall with a 30″ x 15″ pedestal base supporting an 8″ x 8″ x 8 foot tall formed steel decorative column.
- Height may be customized to suit your project vision!
- See page bottom for standard features
Pillar Gallery

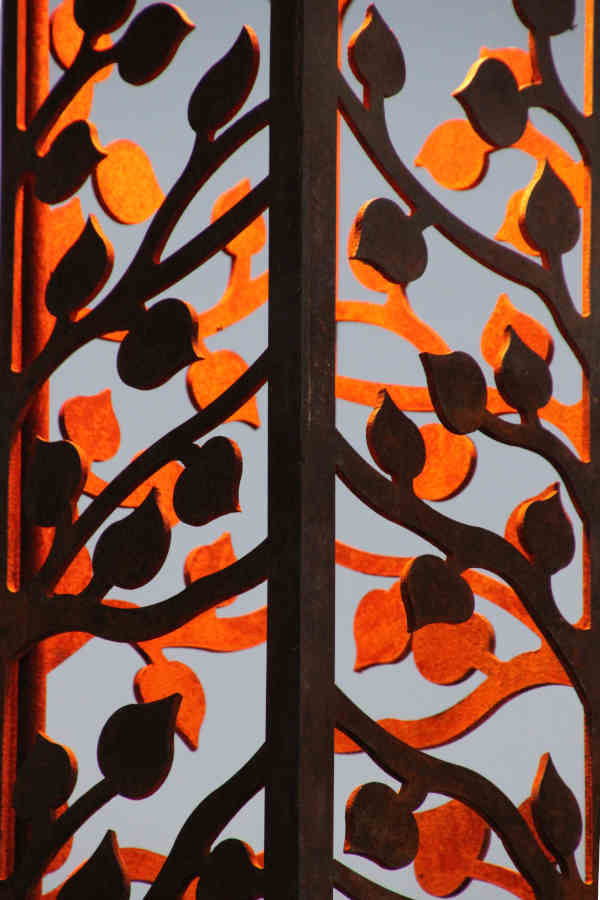

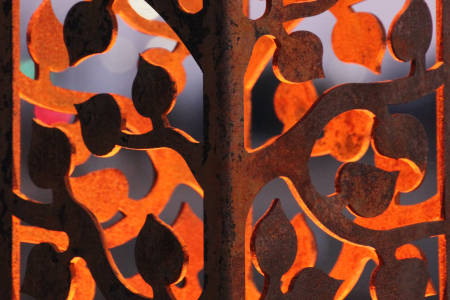

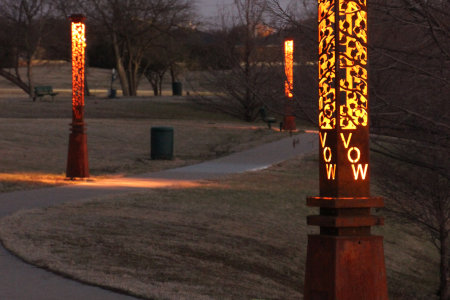

- Below are samples of a custom Aspen design with the initials of the HOA cut into the 8×8 column.
- All 6×6 Series designs can be scaled up to fit Pillars.
- Click on an image to see the enlarged photo
- All Gallery photos are available in high resolution for your promotions! Email Attraction Lights your request to receive a link to a Dropbox folder.

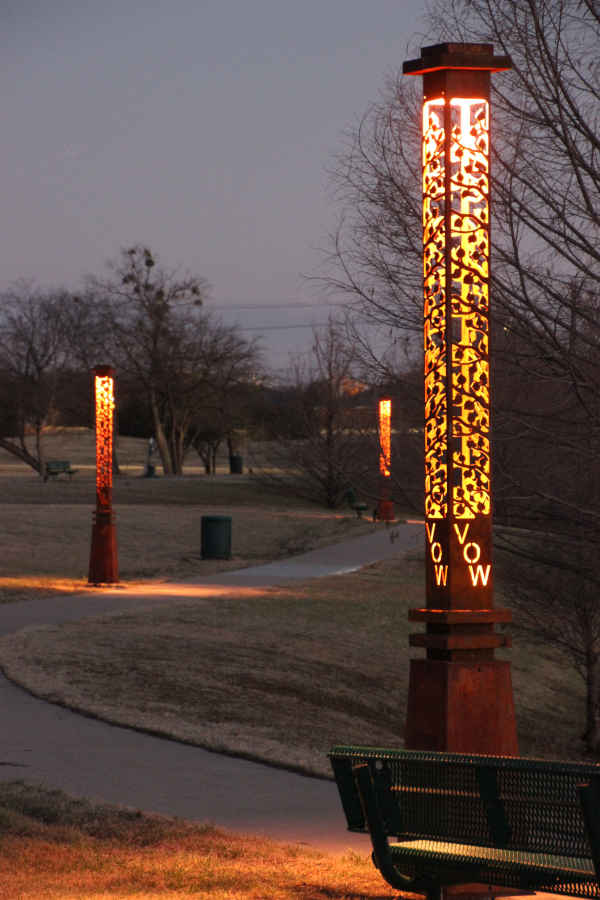

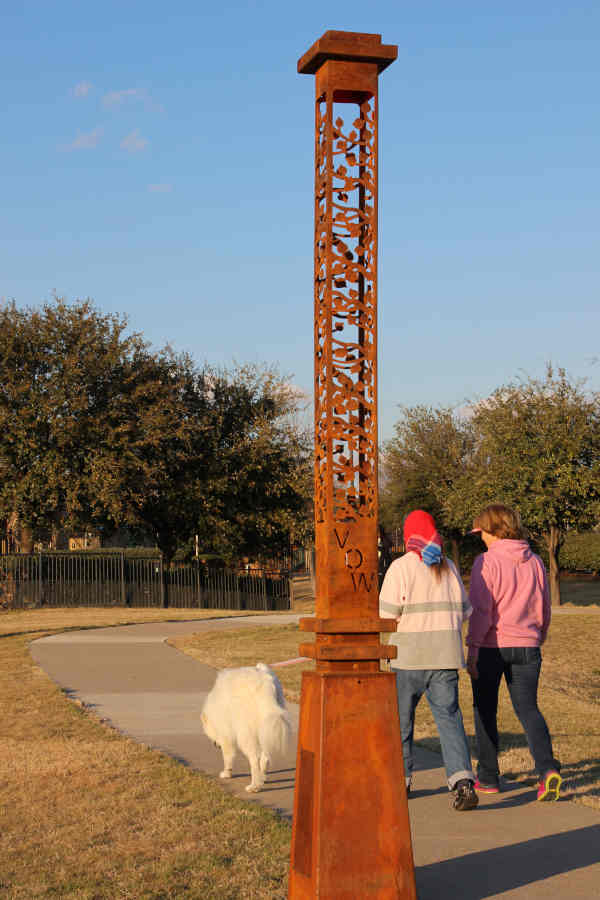

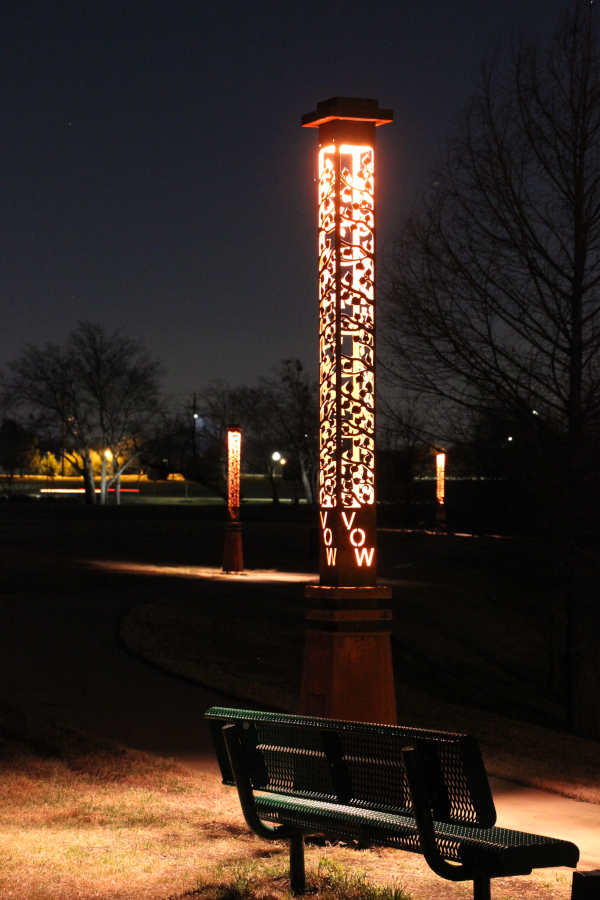

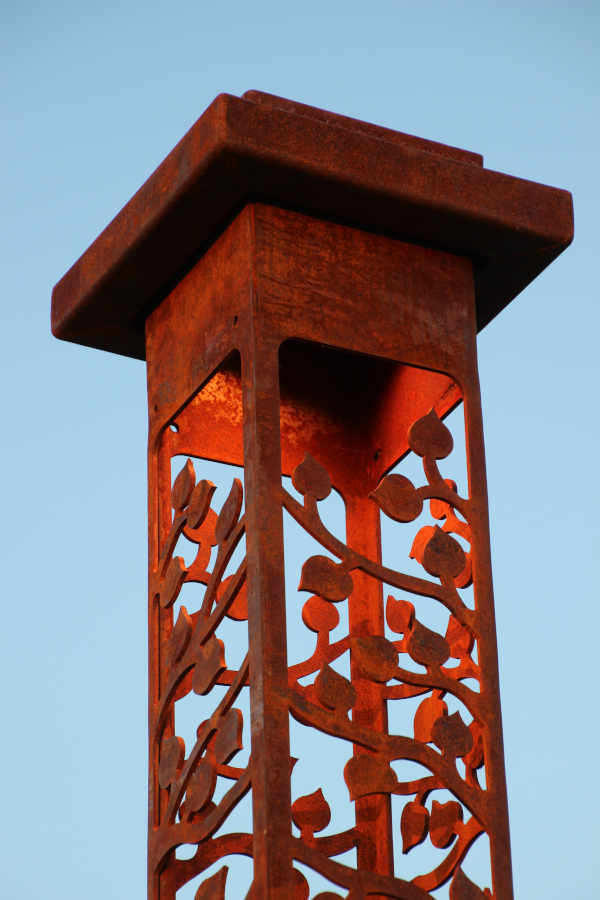

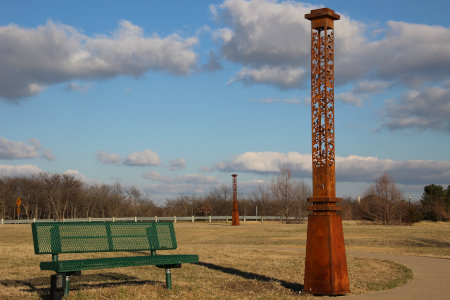

Custom Aspen Pillar 11 ft

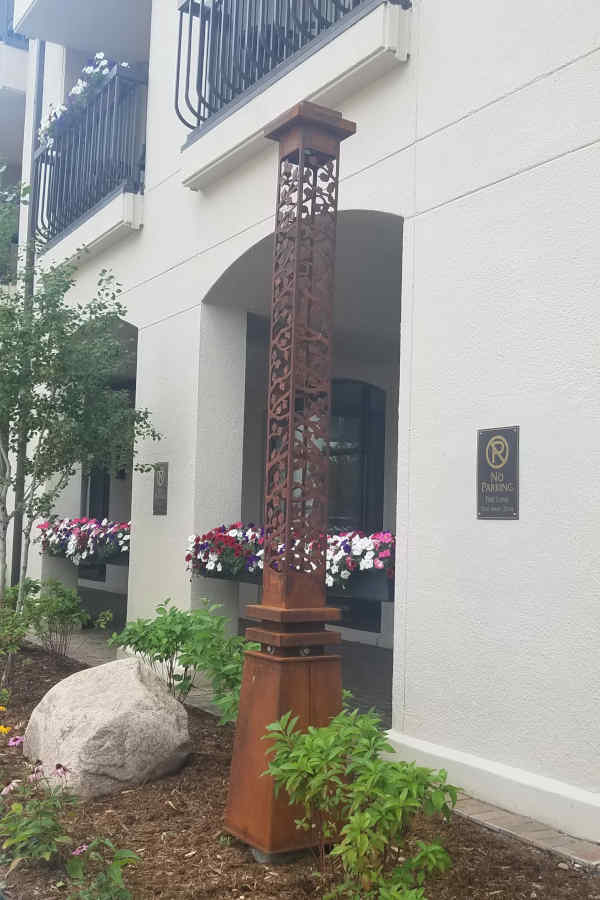

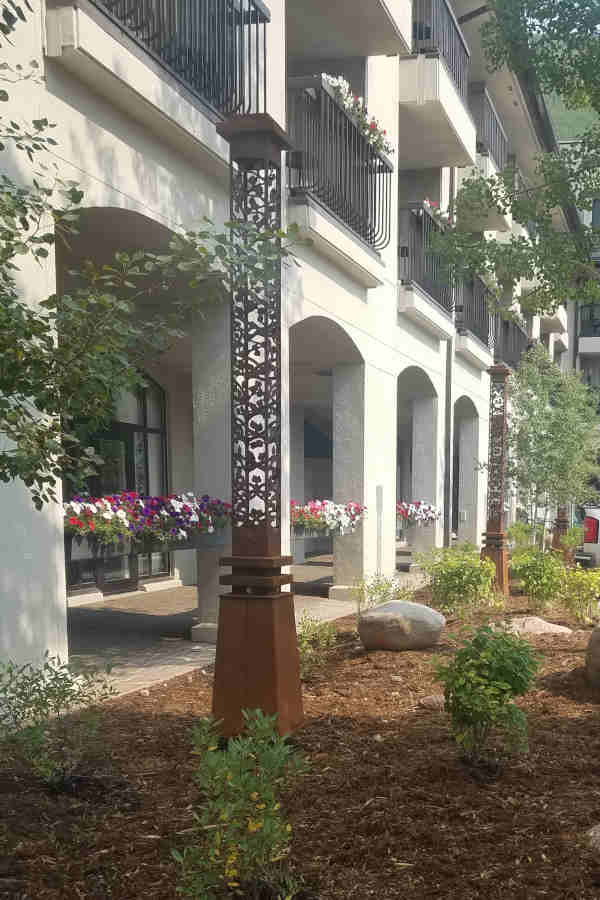

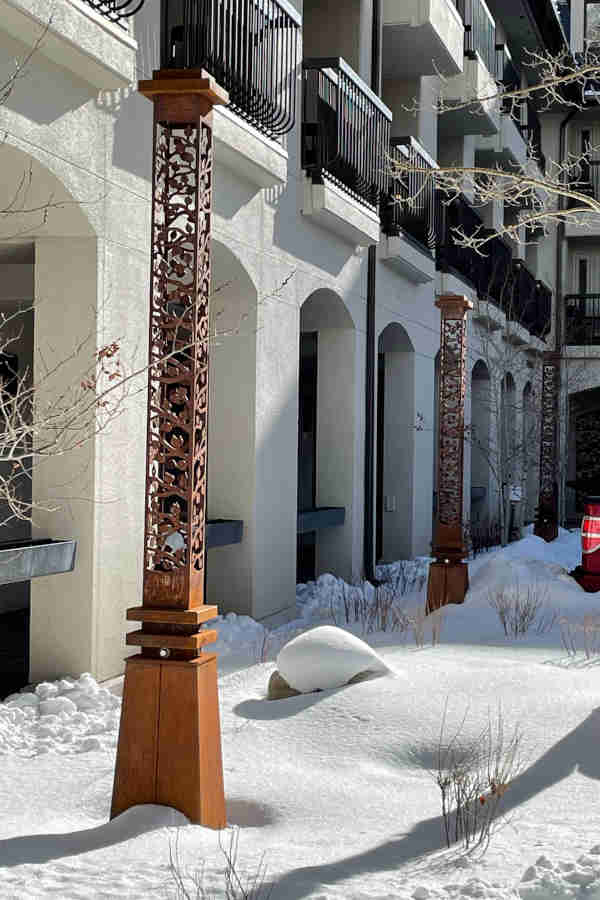

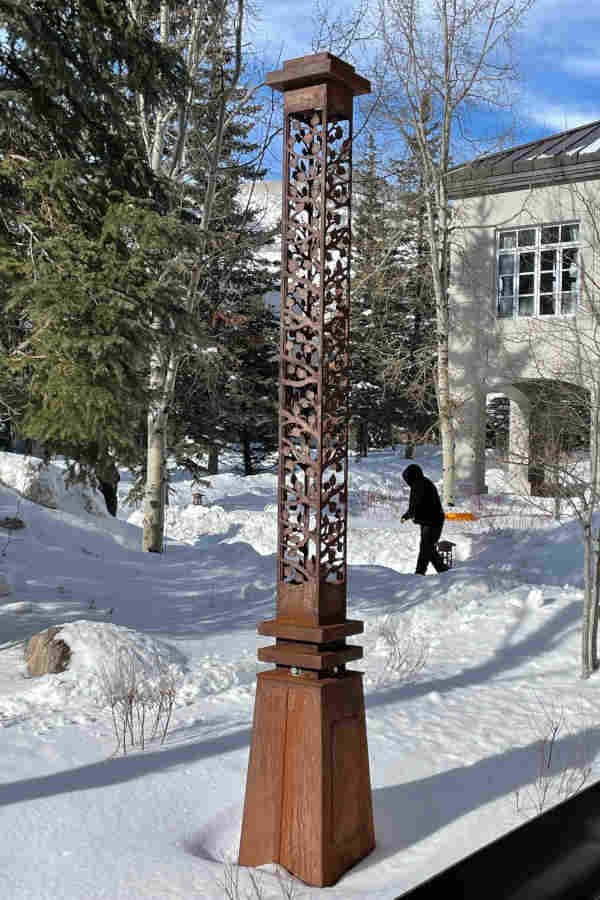

Custom Aspen Pillar 10.5 ft Grand Hyatt Vail, CO
Pillar Standard Features:
- Light Fixture Body: 8-inch square formed steel, 10 gauge .141 inch wall
- Flat cap: Formed steel (10 gauge) – removable for access to LED flood

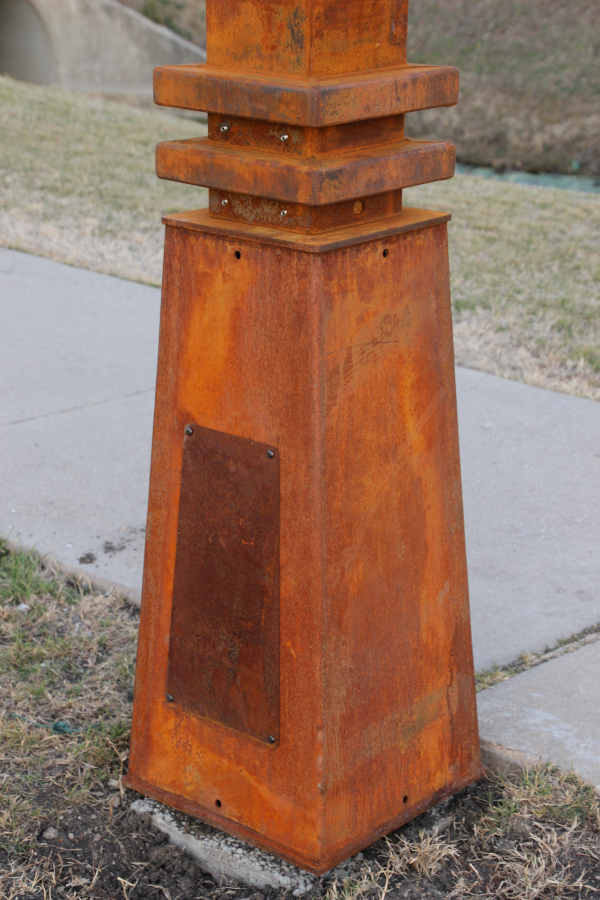

- Pedestal Base: Formed steel (10 gauge) with access plate for wiring and LED flood in base for column up lighting
- Finish: Weathered Steel, see Resources page
- Finish Options (extra cost): Powder Coat (Bronze, Black or Silver) over zinc plated steel, see Resources page
- Design Options: See 6×6 Series Galleries or Resources page for 6×6 Series PDF drawings
- Concrete Pier: 12-inch diameter, hardware & template included, see Resources page
- LED Floods Standard (line voltage): UL listed wet location – cut sheet available on request
- Option: Recommended up lighting from base with 2nd light source (extra cost) for even illumination of 8×8 column
- LED 12 volt lamp options available upon request
- Dark Sky friendly lighting: LED flood shielded and lighting directed down (No up light allowed in base if using the most strict standards.)
- Installation plans and fixture detail PDFs available on Resources page
- Proudly made in USA!
- Lifetime Guarantee with proper installation, see Resources page
