Landscape Lights Installation Guides –  2×2 Series & 4×4 Series

  • When you click on and view the larger PDF image you will have the option to download and save to your computer
  • Scroll down page to find install plans / fixture details for specific lights
  • If any question arises regarding the installation of light fixtures or their details please give us a call:  970-316-0019

PDF Resources & Downloads

2×2 Series:  Click on Guide view to open larger view with option for download

4×4 Series:

Formed square steel tube – heavy 12 gauge steel (0.109″ thick): 4x4x17″, 4x4x25″, 4x4x37″
Consistent features all 3 heights:  Stake mount standard, stainless steel top enclosure plate, wireway built into fixture corner

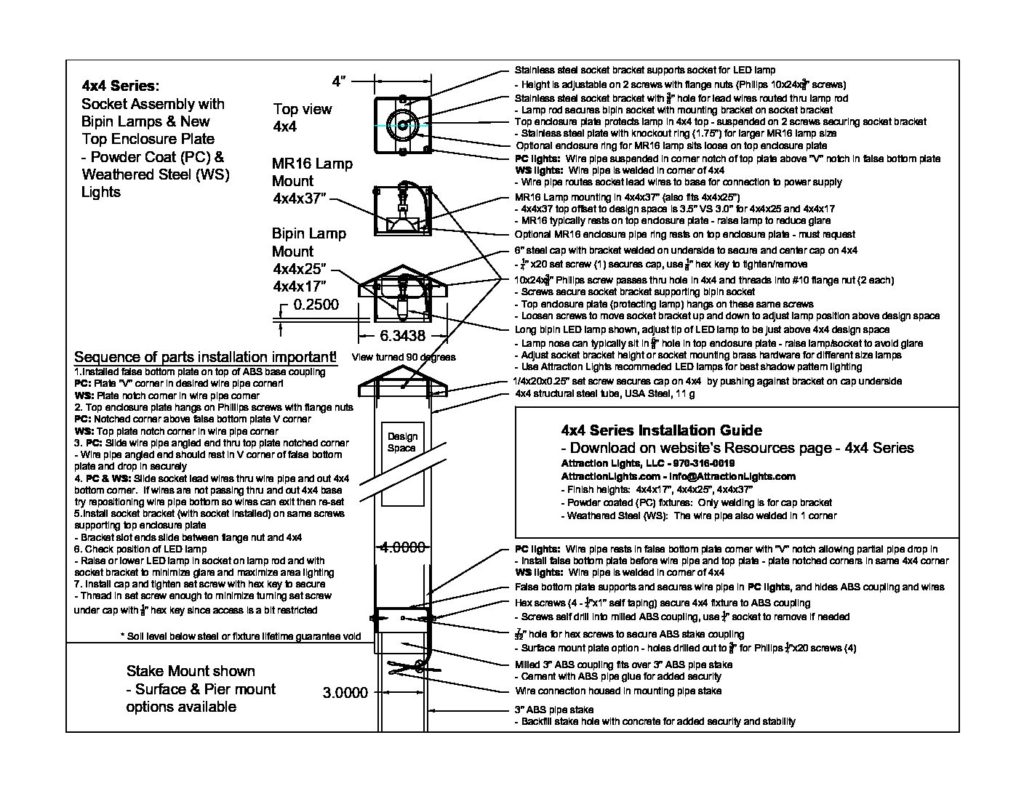

4×4 Series Install Guides: Click on Guide view to open larger view with option for download

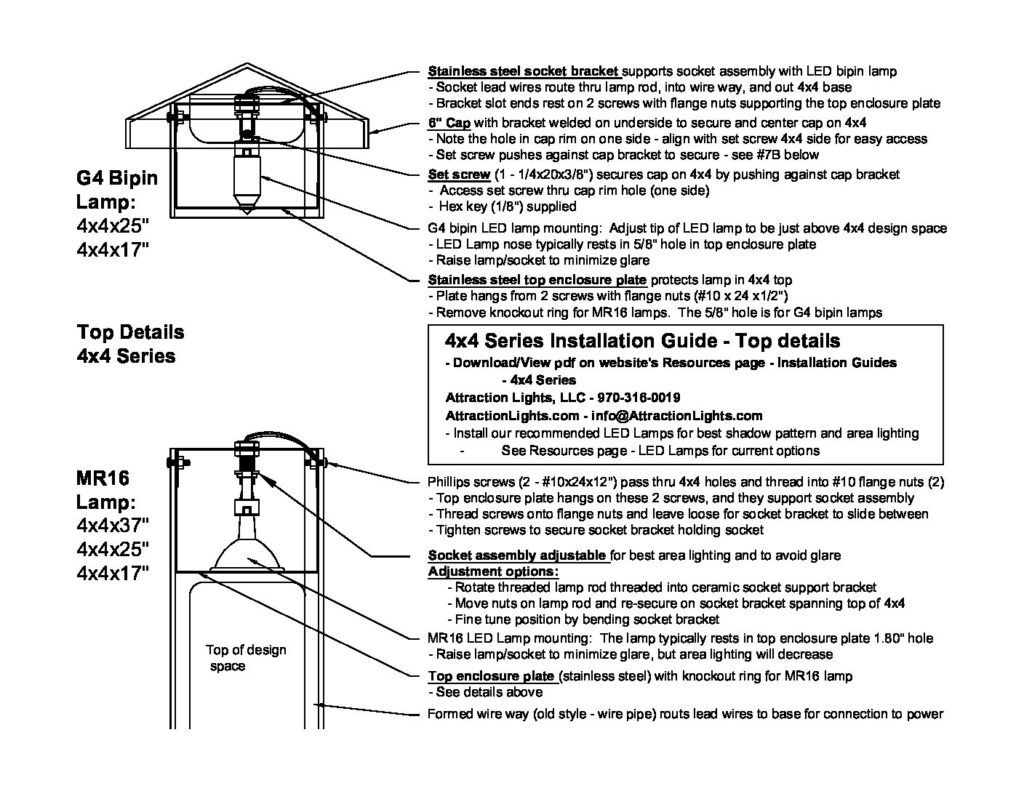

4×4 Series Top Details

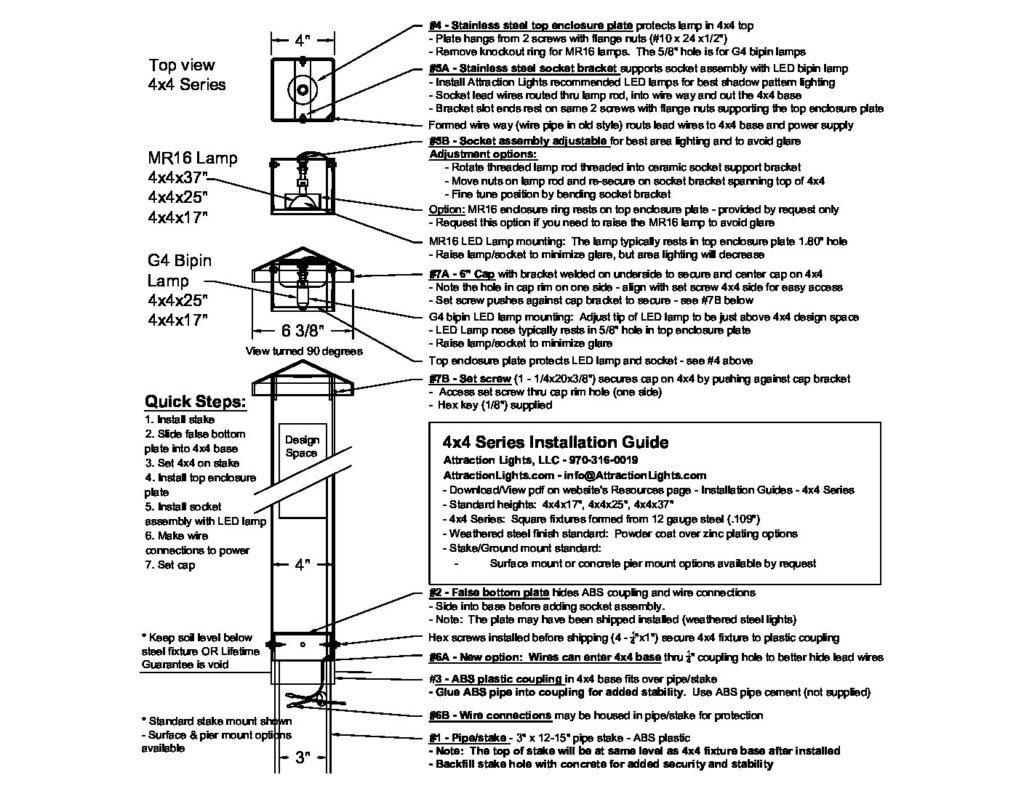

4×4 Series:  Install Guides for older style bollards.
  • Note round wire pipe (old) vs wireway (new) formed into 4×4 corner for socket lead wires.

4x4x37″ Install Guide:  Pier mount option – shown as our “old style bollard”

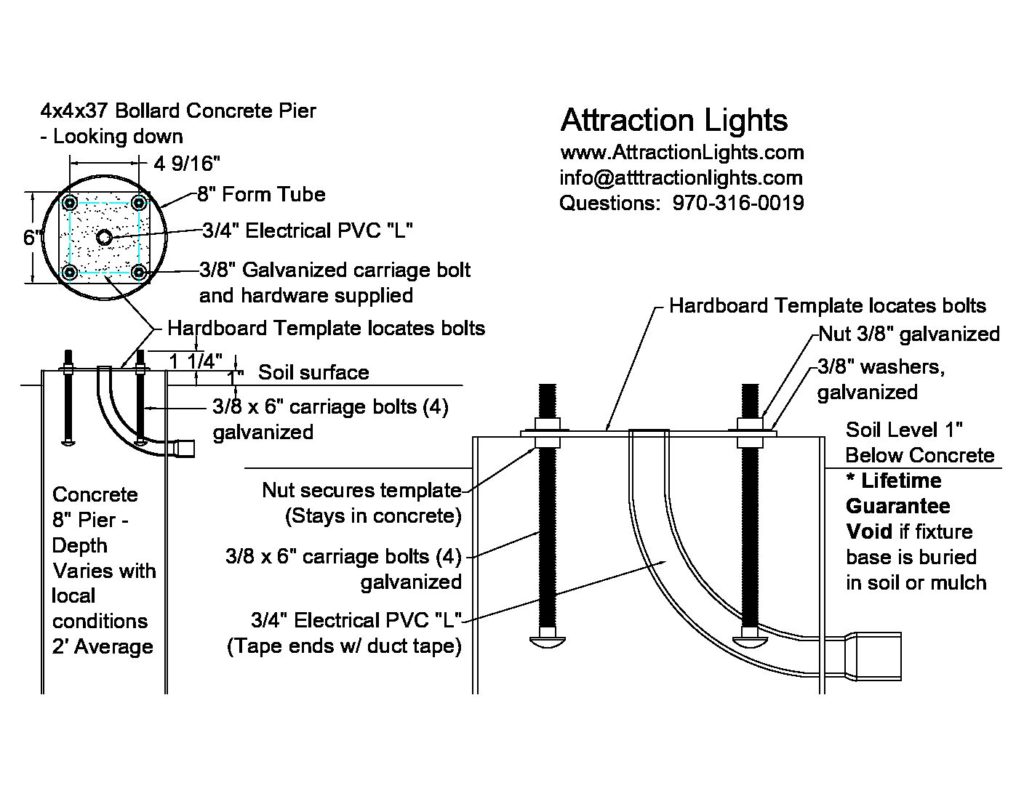

4x4x37″ Install Guide – pier mount template option

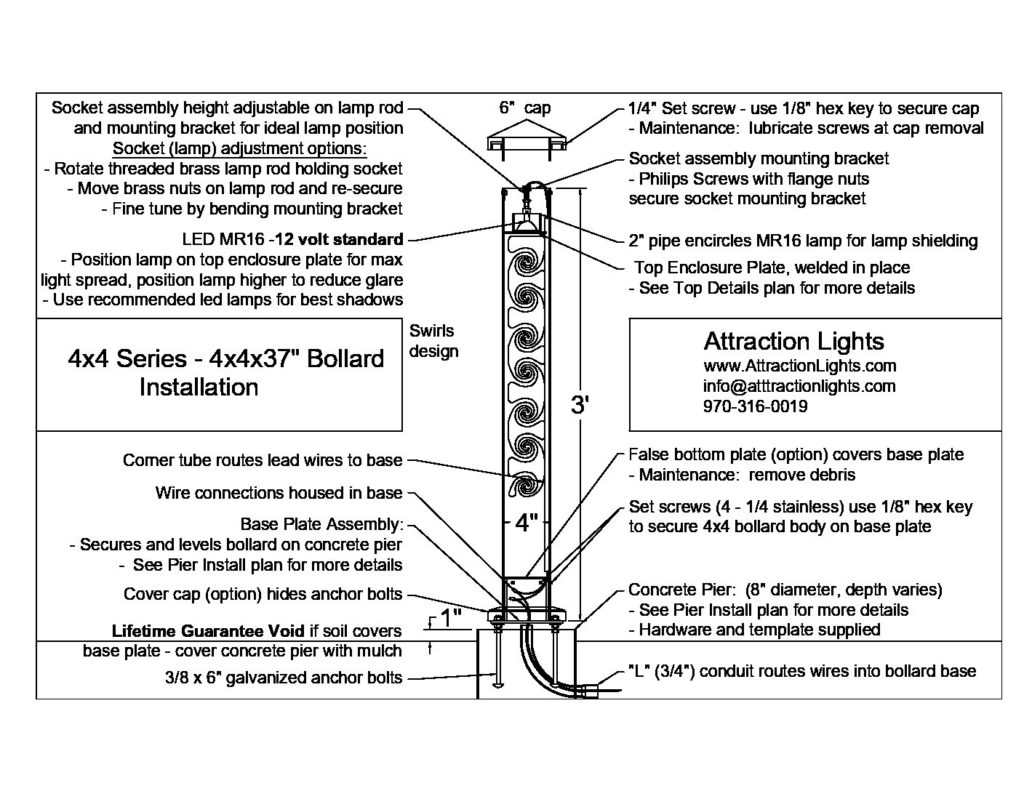

4x4x37″ Install Guide – base plate on concrete pier:  Shown as our “old style bollard”
