Bollards Installation Guides – 6×6 Series

  • When you click on the PDF and view the larger image you will have the option to download and save
  • Scroll down the page to find installation plans / fixture details for specific bollards
  • If any question arises regarding the installation of light fixtures or their details please give us a call: 970-316-0019

6×6 Series PDF Resources & Downloads:

Note:  We are in the process of updating our Install Guides for the “2021 new style” 6×6 bollards.

How can you tell if you have our new style or old style bollards and view the correct Install Guide?

  • Old style:  Bollards with a round wire pipe for the socket lead wires

  • New style:  Bollards with a wireway formed into the fixture corner

  • Please call with any questions.

Note:  12 volt is standard for all plans unless noted otherwise.

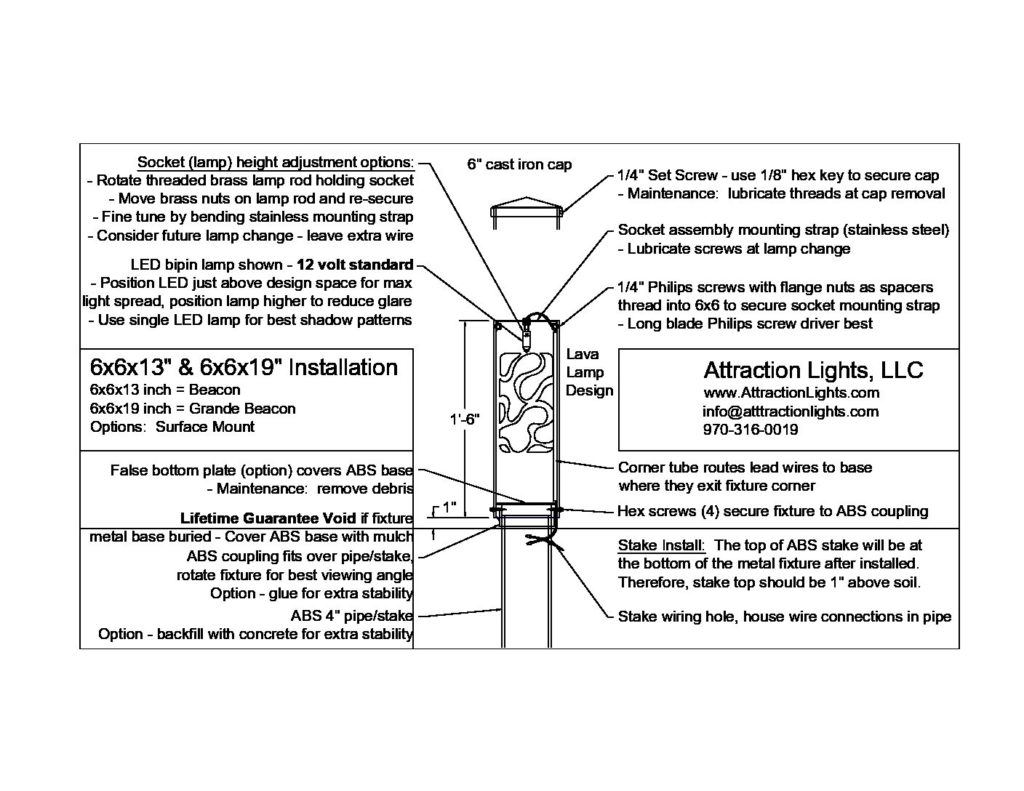

6x6x13″ & 6x6x19″ old style Guide – Overview

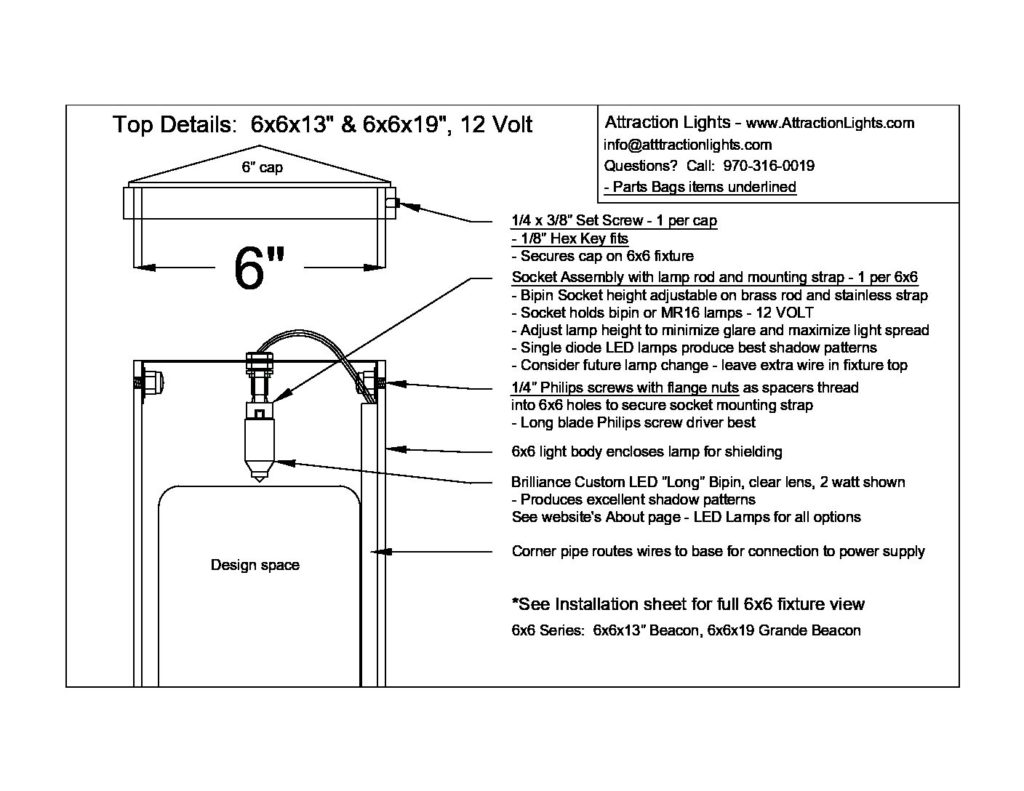

6x6x13 & 6x6x19″ Old Style Guide – top details

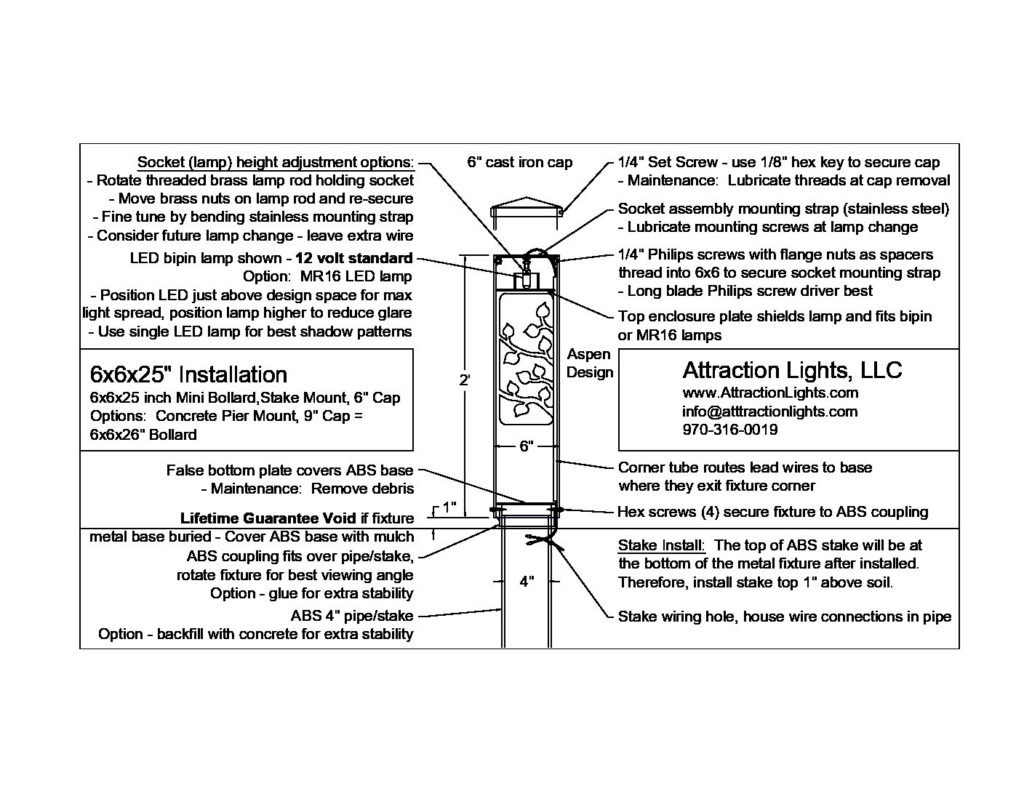

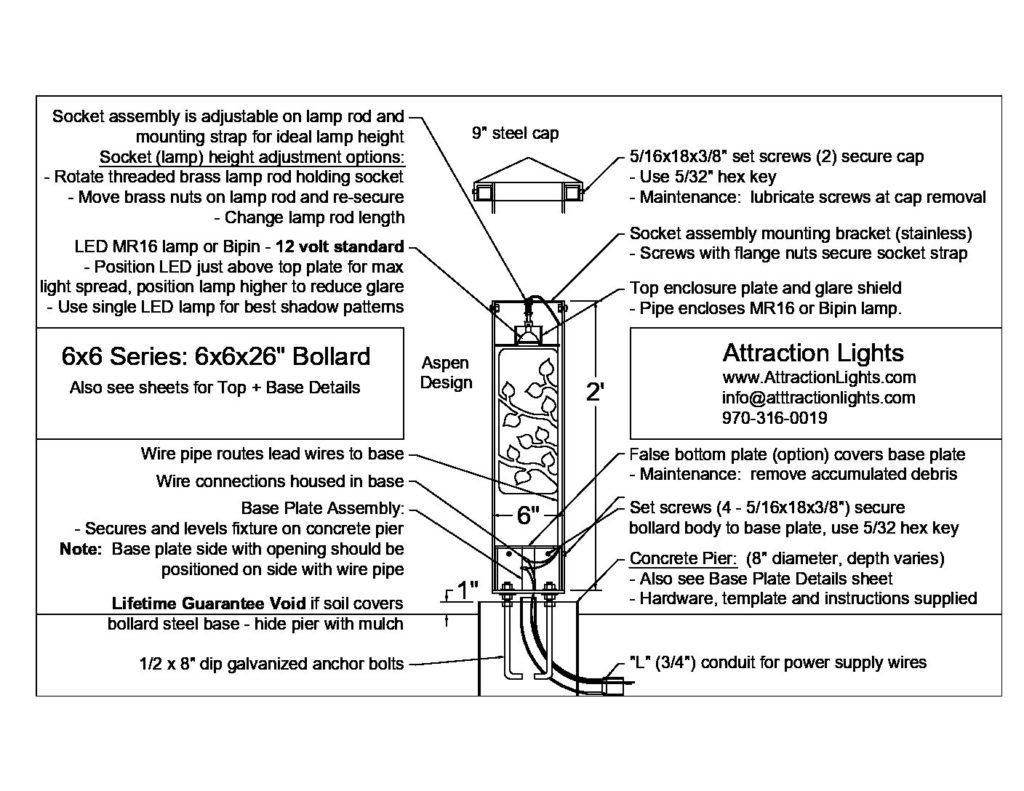

6x6x25″ Old Style Guide – stake mount – Overview

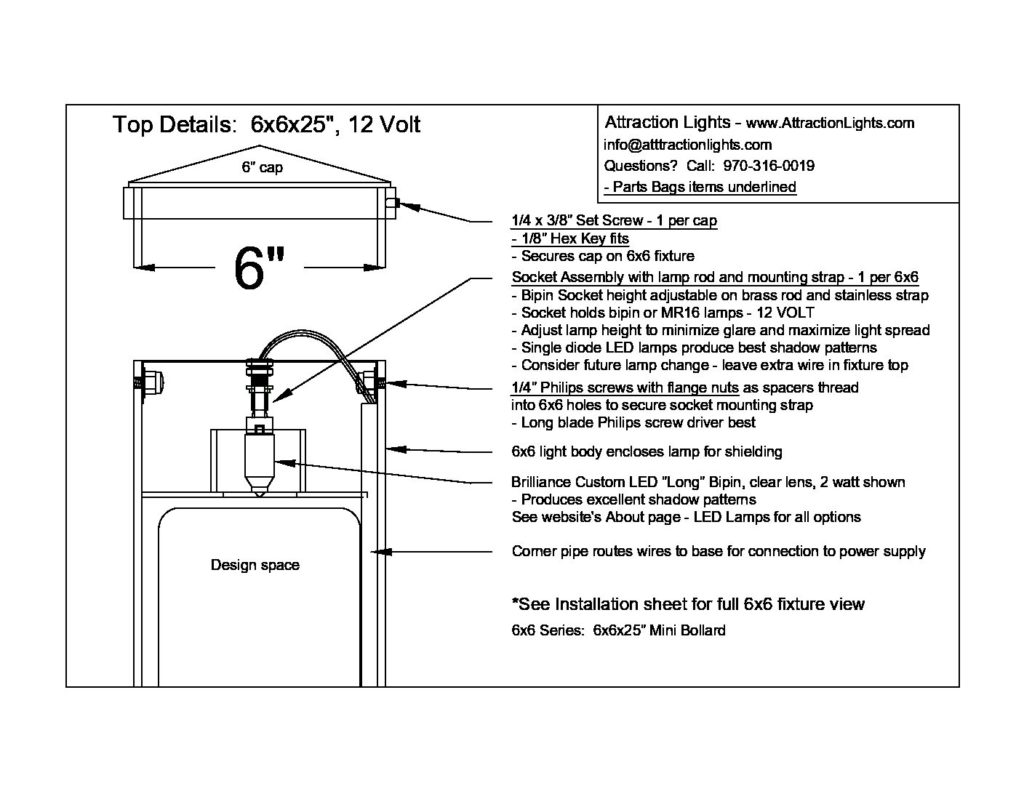

6x6x25″ Old Style Guide – 6″ cap – Top details

6x6x26″ Old Style Guide – pier mount – Overview

6x6x26″ Old Style Guide – 9″ cap – Top Details

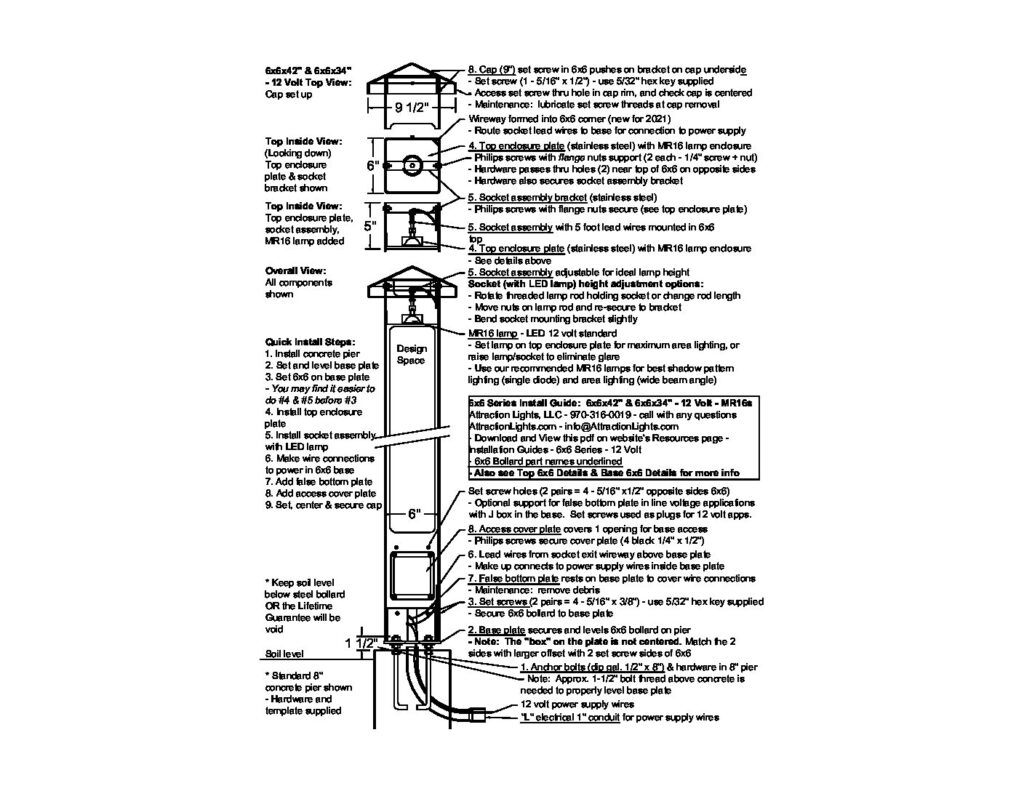

6x6x34& 6x6x42″ New Style Guide – Overview
– Click on image for larger view and to download

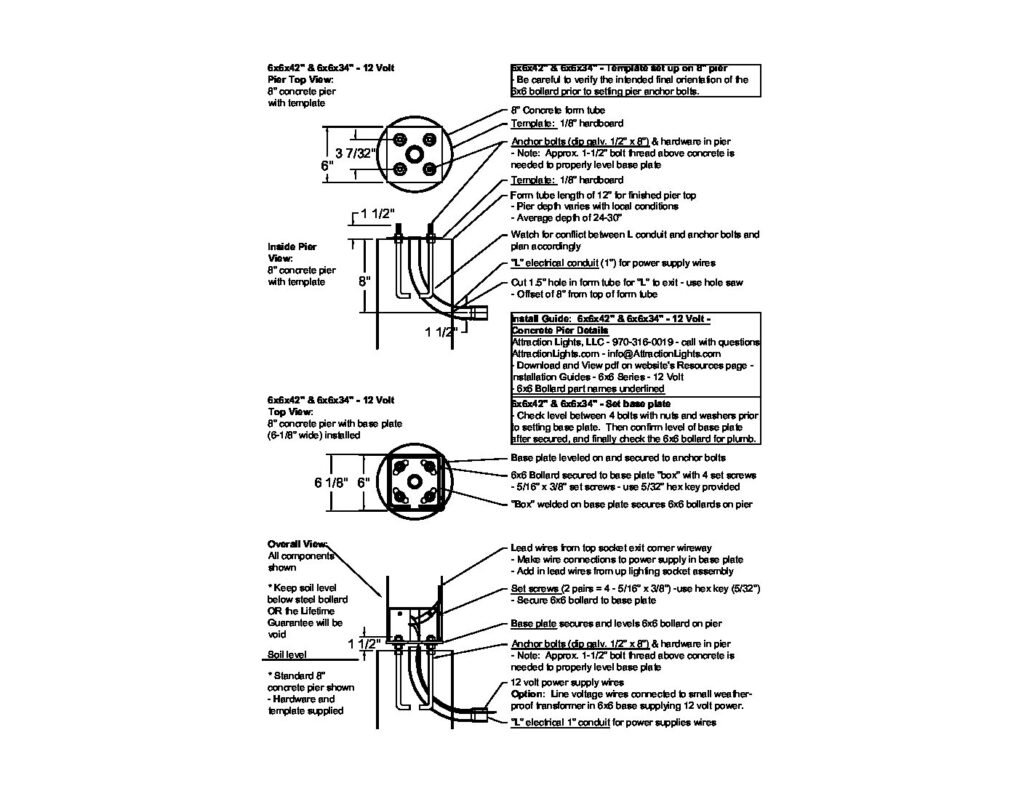

6x6x34& 6x6x42″ New Style Guide – Pier Details

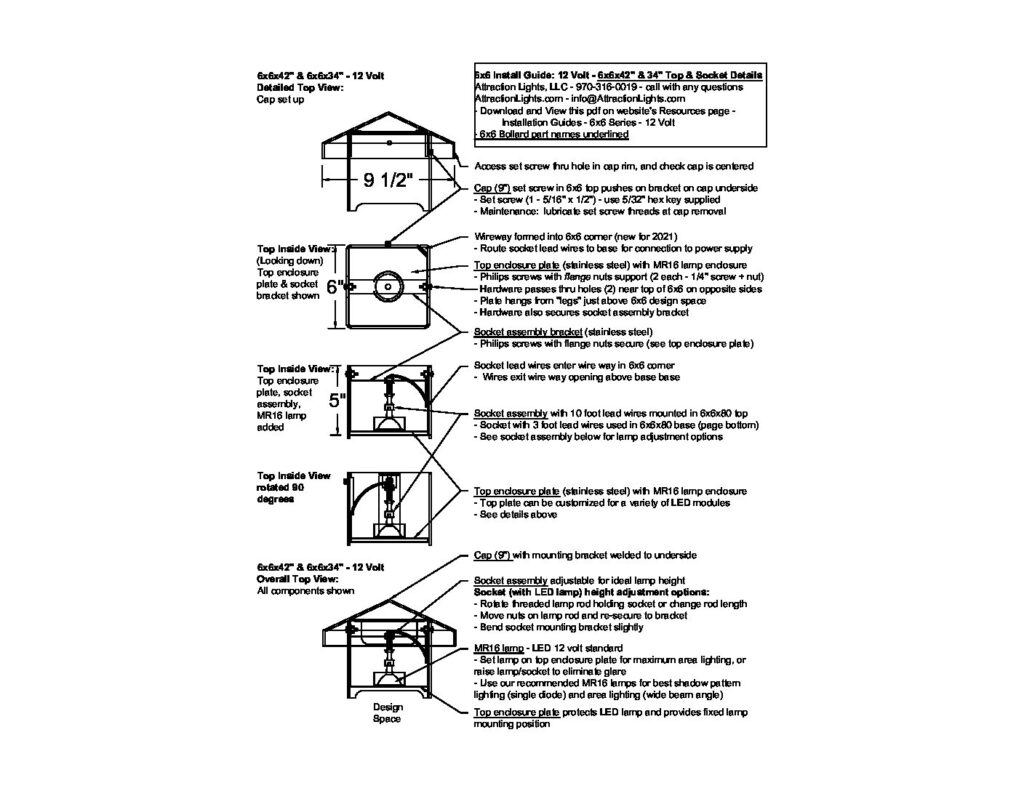

6x6x34& 6x6x42″ New Style Guide – Top Details

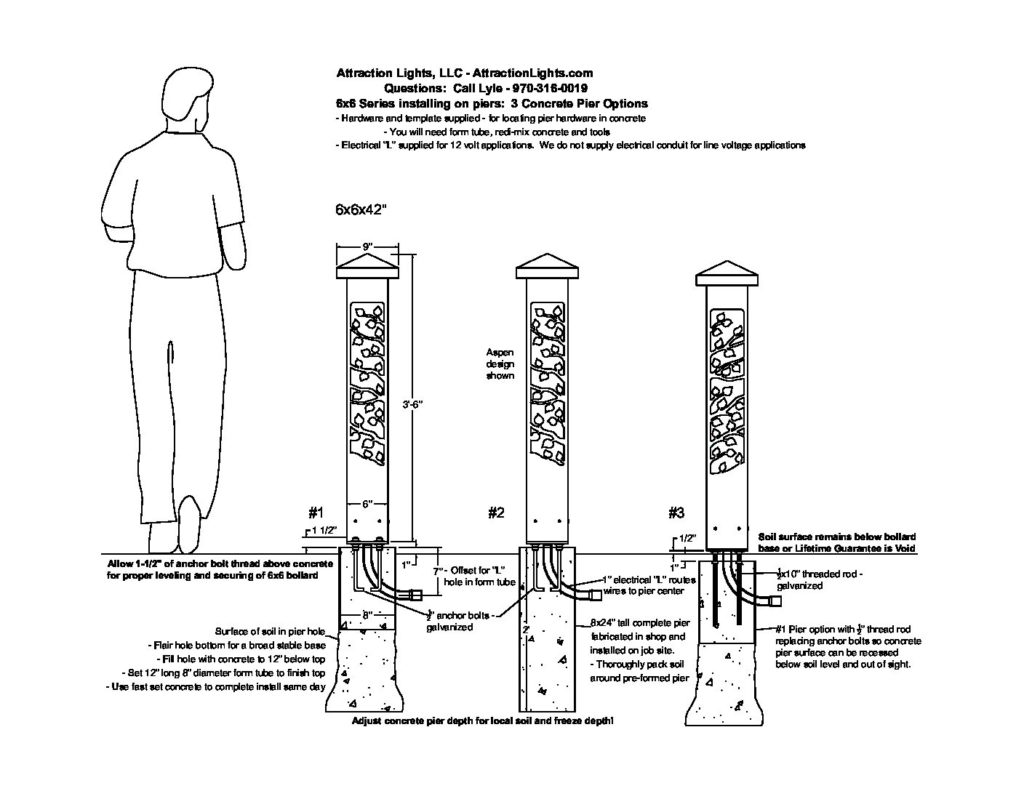

6×6 Series Pier Mounting Options

6x6x34& 6x6x42″ Old Style Guide – Overview
6x6x34& 6x6x42″ Old Style Guide – Top Details

6x6x34 & 6x6x42 Old Style Guide – Pier Template
6x6x34 & 6x6x42 Old Style Guide – Pier Base Plate

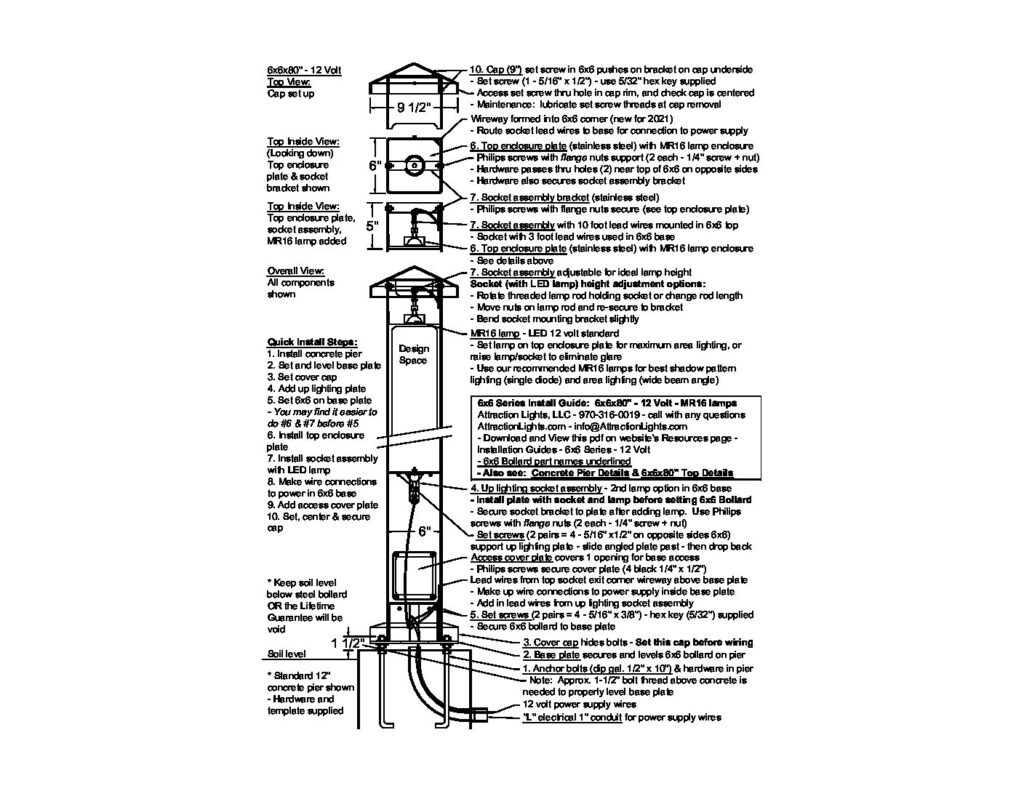

6x6x80″ New Style Guide – 2 Lamps Overview

– Click on image for larger view and to download

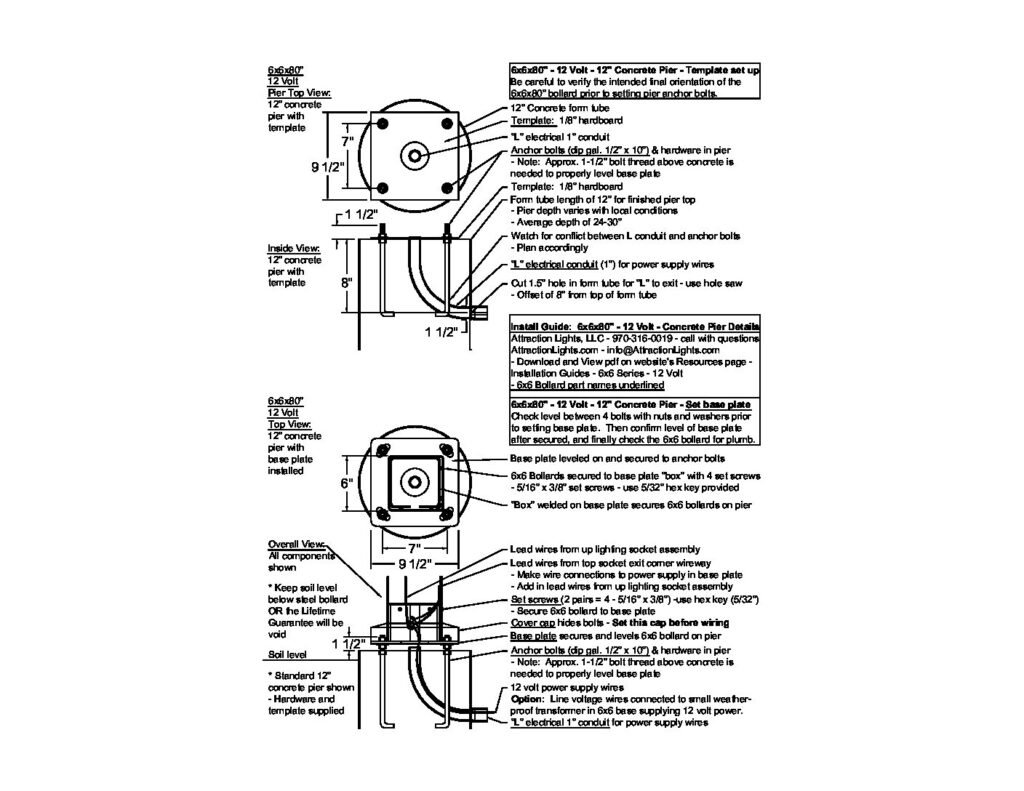

6x6x80″ New Style Guide – Pier Details

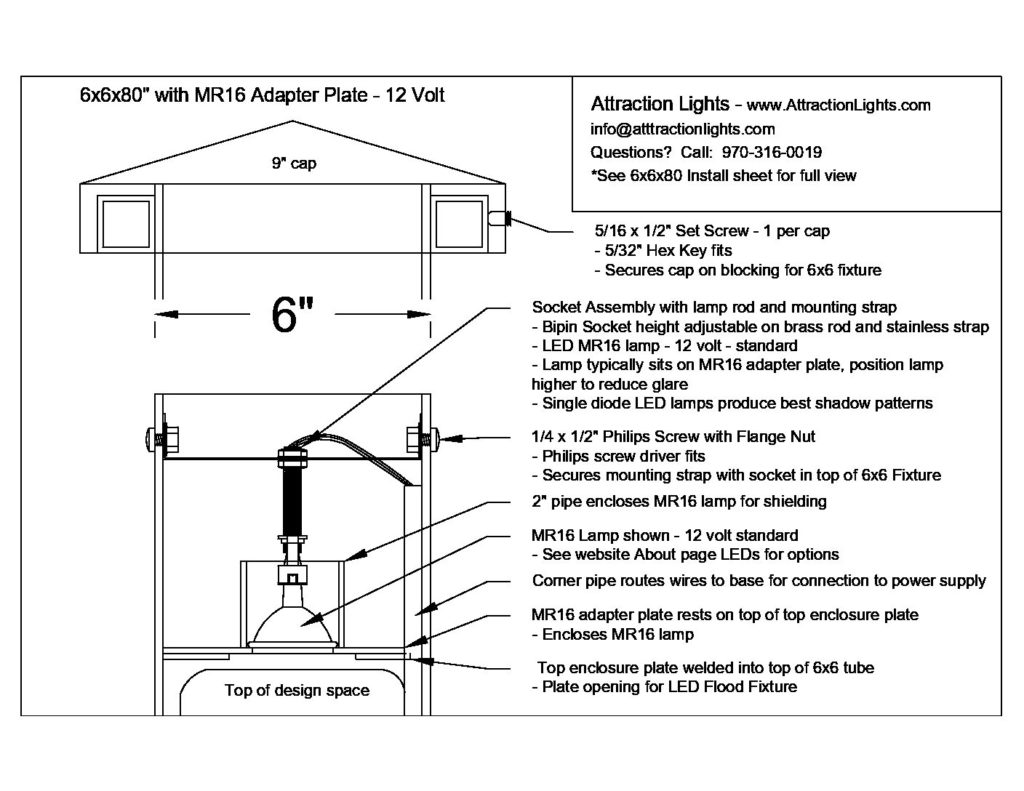

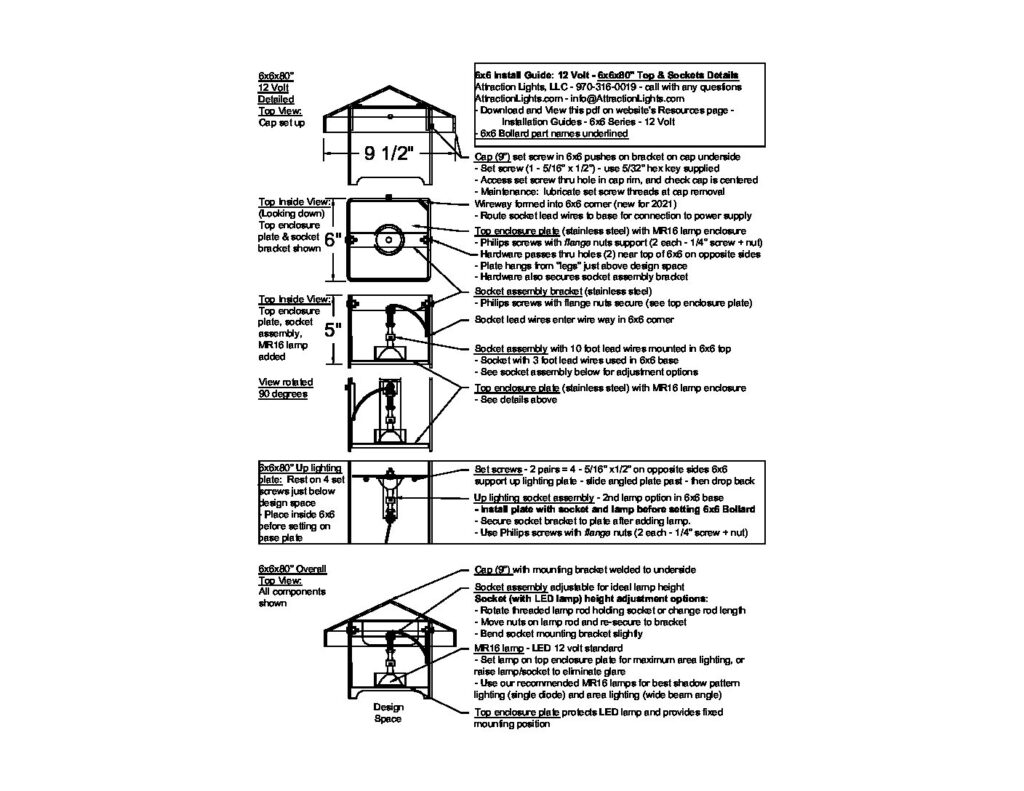

6x6x80″ New Style Guide – Top Details
6x6x80″ Old Style Guide – 2 Lamps Overview
6x6x80″ Old Style guide – Top Details

6x6x80″ Old Style Guide – Pier Template

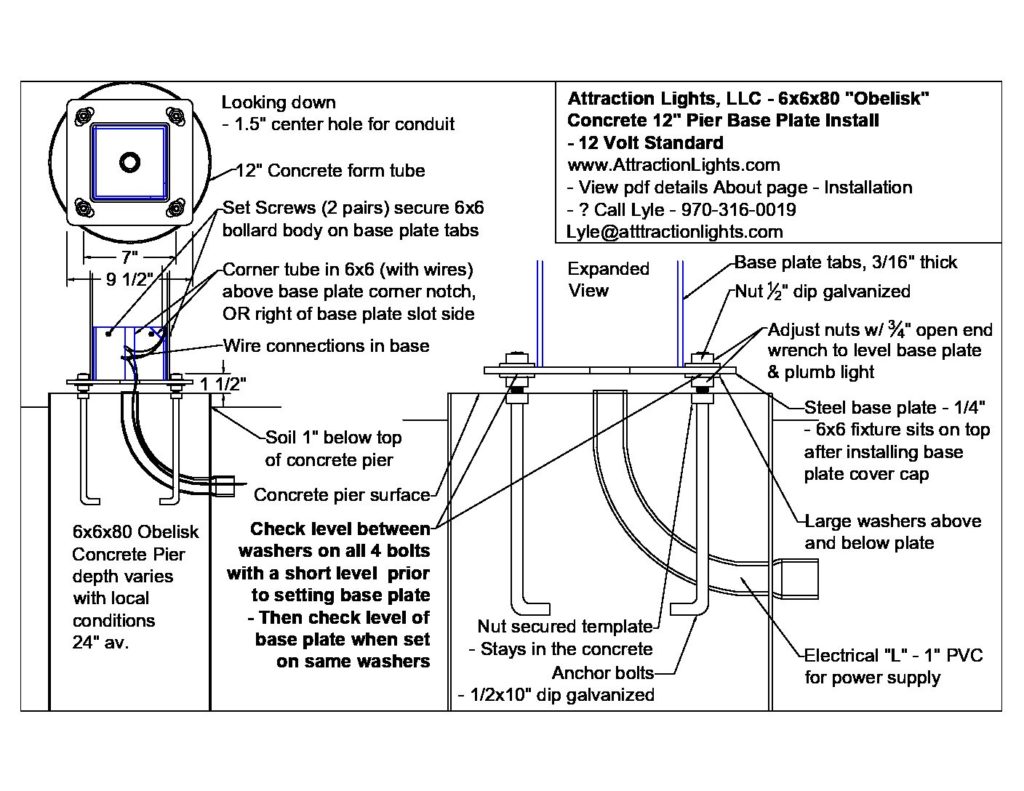

6x6x80″ Old Style Guide – Pier base Plate

6×6 Bollards Line Voltage Option

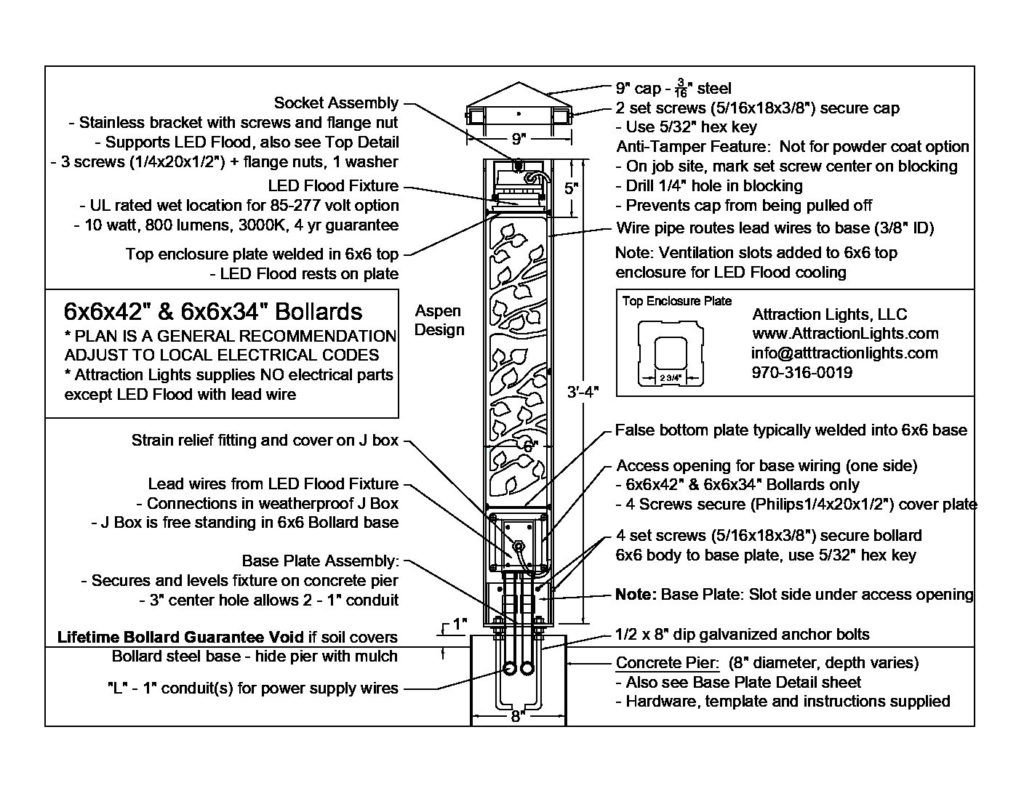

6x6x34 & 6x6x42 Install – 120+ Volt

6×6 Series Pier Mount Options & Details

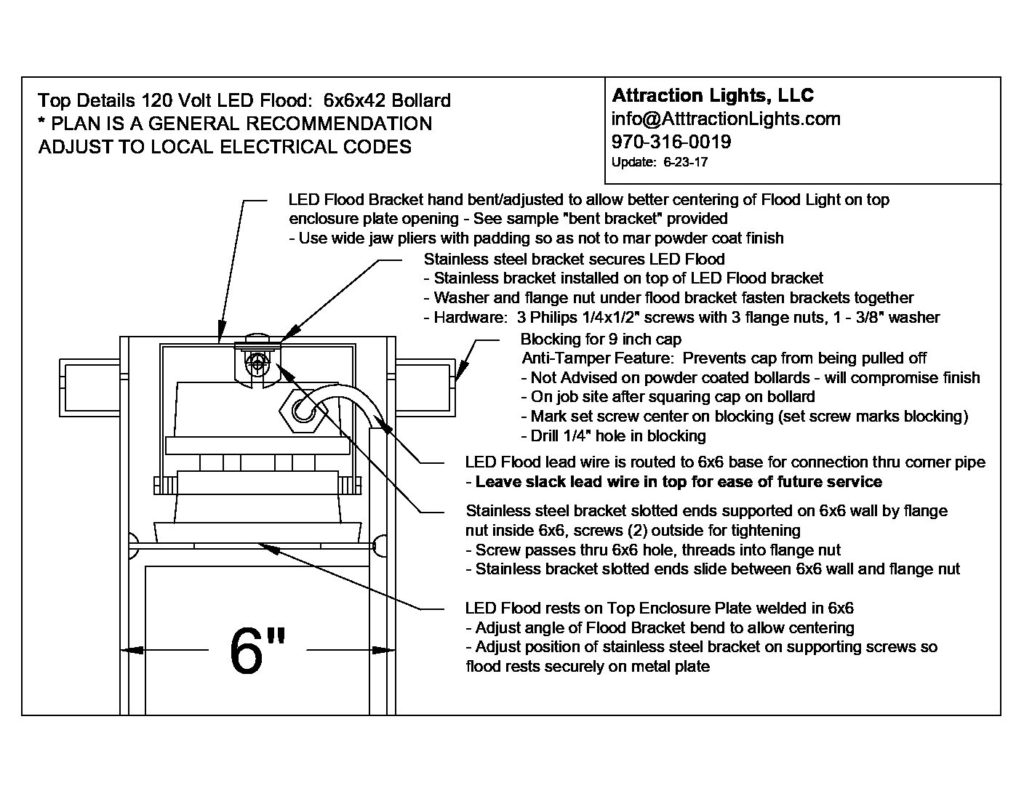

6x6x34 & 6x6x42 Install – top detail – 120+ Volt

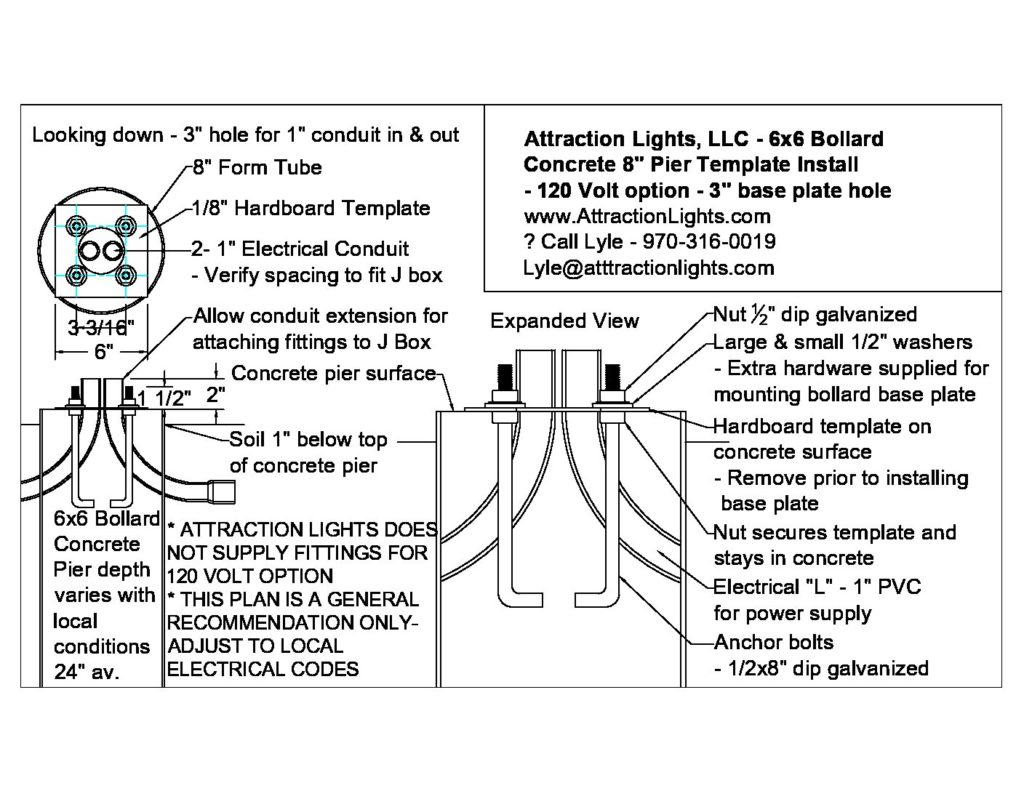

6x6x34 & 6x6x42 Install – template on pier – 120+ Volt

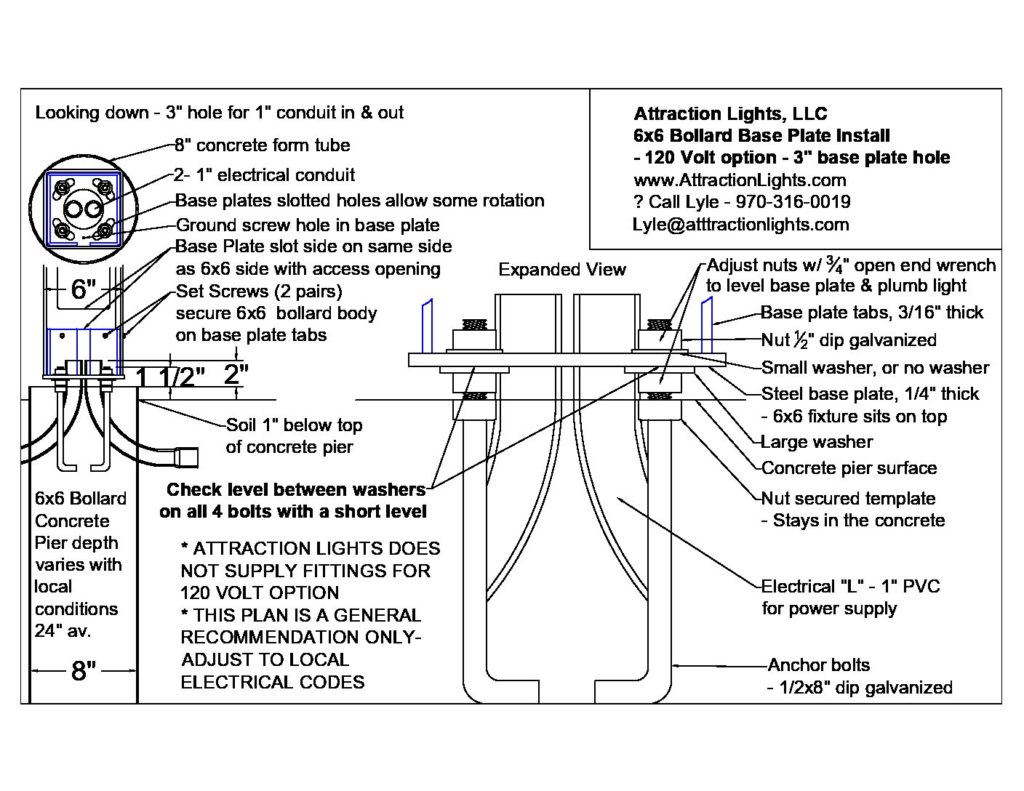

6x6x34 & 6x6x42 Install – base plate on pier – 120+ Volt
